- Industrial and Commercial Applications
- Can be made in lengths 3′-50′(sizes over 30′ have an additional crating charge)
- Standard 16″ width panel and 24 gauge steel
- Ten in-stock 26 gauge colors (See color chart above)
- Five in-stock 24 ga. PVDF colors (Regal White, Matte Black, Aged Bronze, Charcoal Gray & Dove Gray)
- Available in over 60 colors for 24 gauge. (See color charts/matrix below)
- UL 790 Fire Resistance Class A
- UL 2218A Impact Resistance Class 4
- .032 Aluminum & 24ga premium steel w/Kynar® paint and 26 gauge premium steel w/Textured Paint or Low Gloss paint available. (500 lin. ft min. order)
- 20″ width panel- 24 gauge steel (500 lin. ft min. order)
- 12″ width panel- 26 & 24 gauge steel (750 lin. ft min. order)
- Made standard with Ruler ribs to decrease oil canning.
- Mechanically Seamed System (Must use a manual or mechanical seaming tool to secure panels together.)
- Mechanical seamers can be rented from Quality Roof Seamer. Click here to learn more
- Used on roofs with pitches of 0:12 or above when double seamed.
- Current Lead Time: Please call
*View the color chart matrix below for the colors available in this profile.

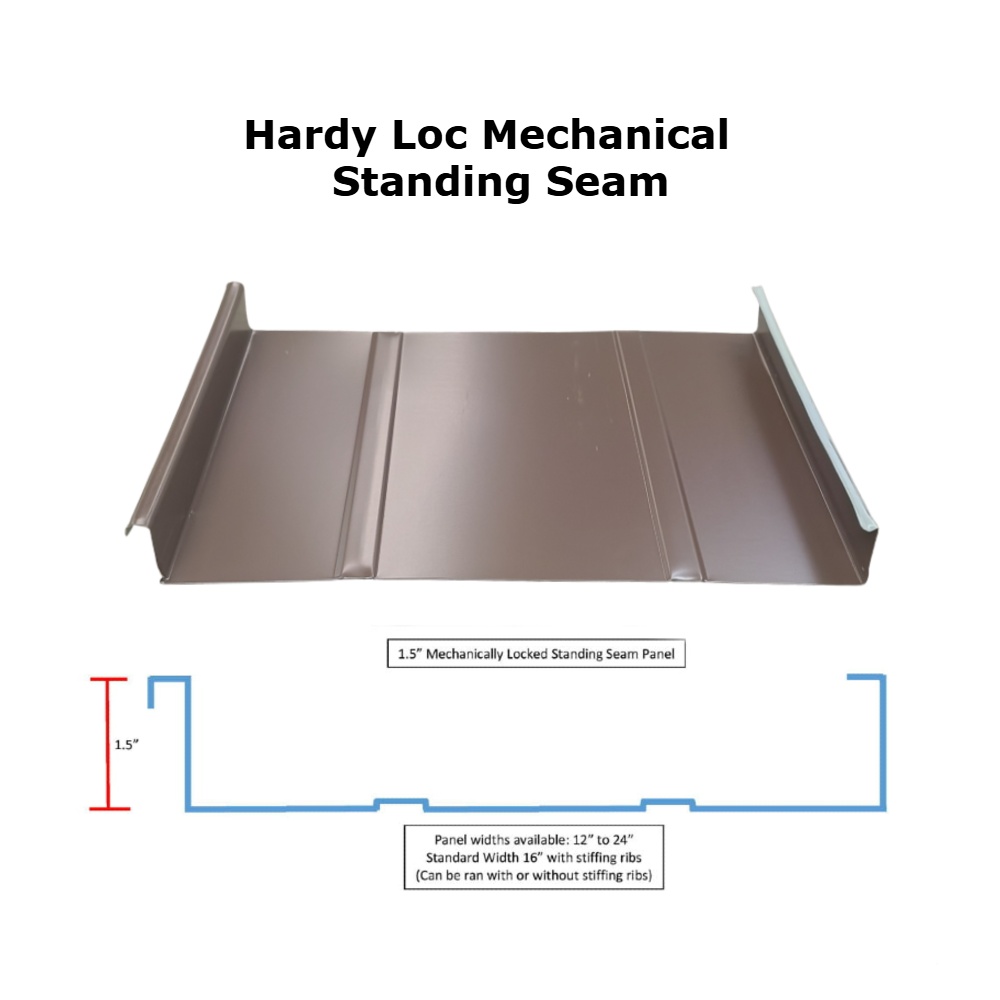

Our Hardy Loc standing Seam Panel is a mechanically seamed panel. Unlike the Hardy Snap and Hardy Clip standing seam panels our 1-1/2″ mechanical lock standing seam panel is attached with clips and seamed with a power or manual seaming tool that makes a single fold or a double fold. This makes the Hardy Loc panel system able to be installed on roofs with extremely low pitches, 1/2:12 with a single seaming machine or 0:12 with a double seaming machine. Please be aware this panel is not made to be a “beauty” panel it is designed to perform on low or flat roofs and will give an industrial look to houses or commercial buildings.
Not all Steel Roofing is Created Equal. Make an Educated decision.
The Hardy Loc Standing Seam Panel has eight layers of coatings to complete the paint system. It also features an exclusive limited lifetime paint & steel warranty. With the best warranty and paint coatings available in the industry, you will know your home will be protected from the elements for hundreds of years.
All of our Standing Seam Panels come with an exclusive Limited Lifetime Non-Prorated Paint & Steel Warranty. Sample warranty available upon request.
See how a mechanical seamer tool works in the video below.
The mechanical seamers can be rented from Quality Roof Seamer. Click here to learn more.
Additional Product Information
MMMS 26/24 Gauge Steel In-Stock Color Chart and Matrix (PDF)
Quartz 26ga Textured Paint Color Chart (Special order) (JPG)
Sheffield Metals Special Order 24ga Steel & .032 Aluminum Kynar Colors(PDF)
Sheffield Metals Low Gloss 26ga Steel Colors (PDF)
Ultra Clad Color Chart Special Order 26ga & 24ga Steel colors (PDF)
Ultra Clad Textured Color Chart Special Order 26ga Steel (JPG)
East Lake Metals Special Order 24ga Steel, and 0.032 Aluminum Colors(PNG)
Available standard trims (PDF)
Installation Guide (PDF)
